Industrial Manipulators for Safe, Ergonomic Gripping, Lifting & Emptying of Bags
Dalmec industrial manipulators are used worldwide to grip, lift, tilt, and empty paper, plastic, woven, and foil-lined bags—handling typical 10–50 kg sacks of powders, granules, seeds, additives, and ingredients at depalletising, dosing, and process infeed stations—with application-specific tooling such as pneumatic bag clamps, wide-mouth suction frames, “J” hooks and knife/opening devices, and tilt/rotate heads that give operators smooth, weight-balanced control for precise pouring while reducing strain and product loss.
At Dalmec, safety and customization are at the core of every solution. All manipulators are manufactured in conformity with UNI EN standards, EC ATEX directives, and international safety guidelines. From functional analysis and technical design through simulations, prototype creation, and final implementation, our engineers work in close partnership with clients—performing continuous checks and reviews throughout development—to deliver state-of-the-art handling systems tailored to specific production needs.
Dalmec Manipulators for Bags – Gripping, Lifting & Emptying
Dalmec manipulators for bags ensure safe, repeatable, and efficient handling across food & beverage, chemicals, pharmaceuticals, agriculture, and building-materials plants. Tooling options include pneumatic bag grippers with anti-slip jaws, vacuum plates for clean surfaces, integrated slitters/tear hooks for controlled discharge, and powered or manual tilt (0–90–180°) for accurate emptying into hoppers and mixers; systems can be configured in column, overhead, or trolley-mounted executions for clear floors and long reach, with options such as stainless or food-grade finishes, dust-extraction interfaces, low-headroom designs, ATEX-rated setups for solvent or combustible-dust zones, and add-ons like weigh-assist or recipe-dosing interlocks. Whether depalletising sacks, feeding process equipment, or supporting rework and repack operations, Dalmec solutions enable continuous, reliable operation and measurable gains in safety, quality, and productivity.

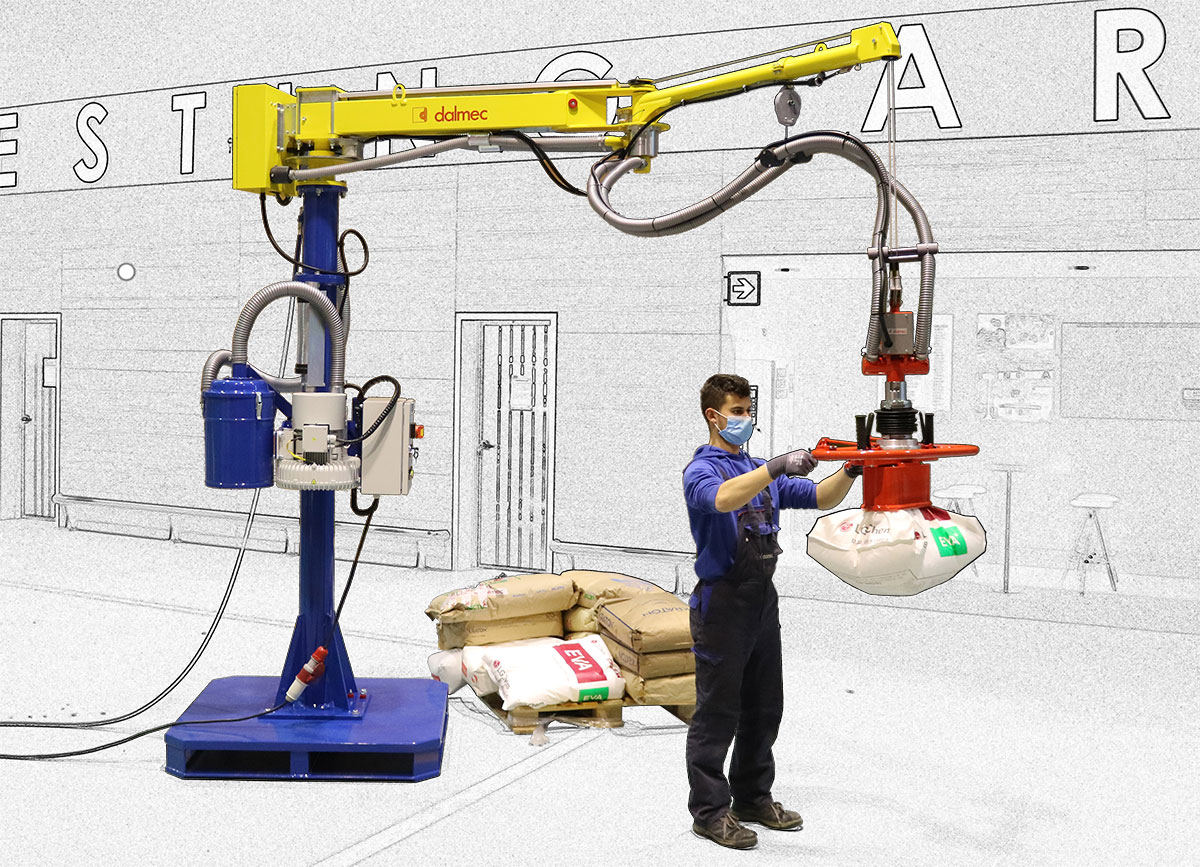

Rope Manipulator for Bags — Posifil with On-Board Vacuum Turbine
A Posifil rope manipulator configured with an electric turbine vacuum pump and suction-cup tooling lets operators pick paper or plastic bags (and even boxes, rubber bales, or drums), giving smooth, weight-balanced handling in low-ceiling areas with typical specs around 50 kg capacity, 5,000 mm reach and 1,800 mm vertical lift.

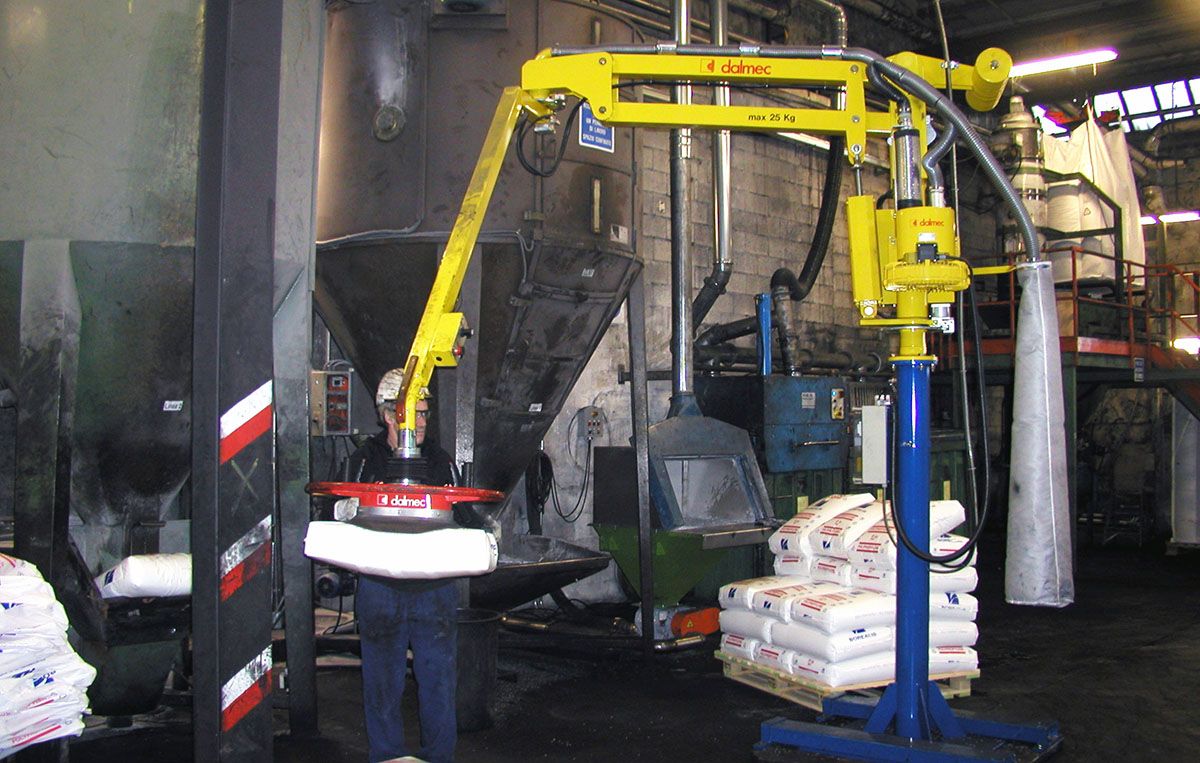

Industrial Manipulator for Bags — Partner (Column-Mounted) with Suction Head
A Dalmec Partner manipulator in column execution uses a dedicated suction head to pick bags from pallets and feed them to mixers or process inlets, enabling ergonomic depalletising/palletising up to roughly 2 m stack height with precise, safe control.

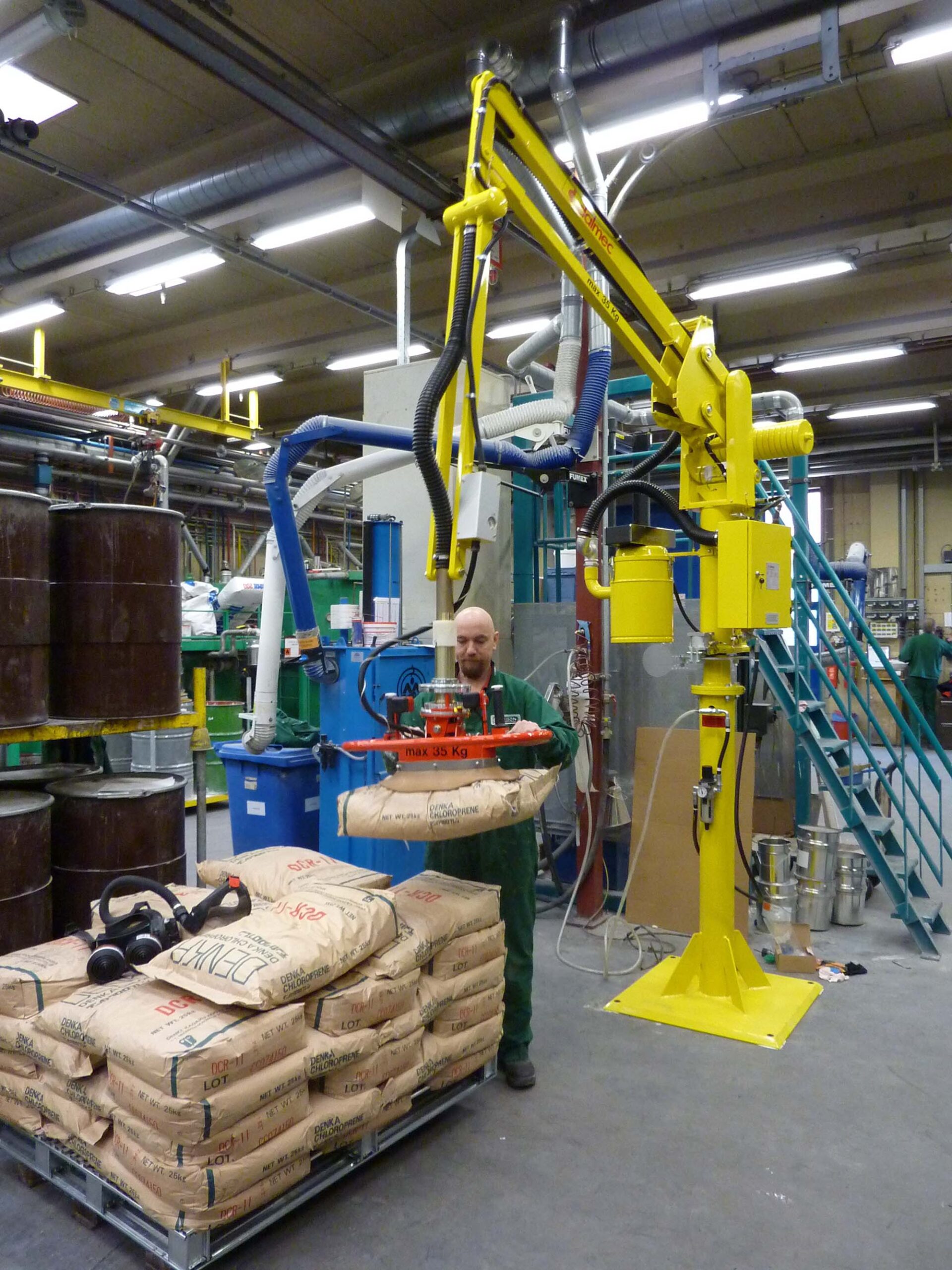

Manipulator Partner Standard for Bags — Palletising/Depalletising up to 2 m
The Partner PSC “standard” bags setup provides effortless palletising and depalletising of sacks stacked to about two metres, combining vacuum pick-up with balanced arm motion for fast, repetitive handling.

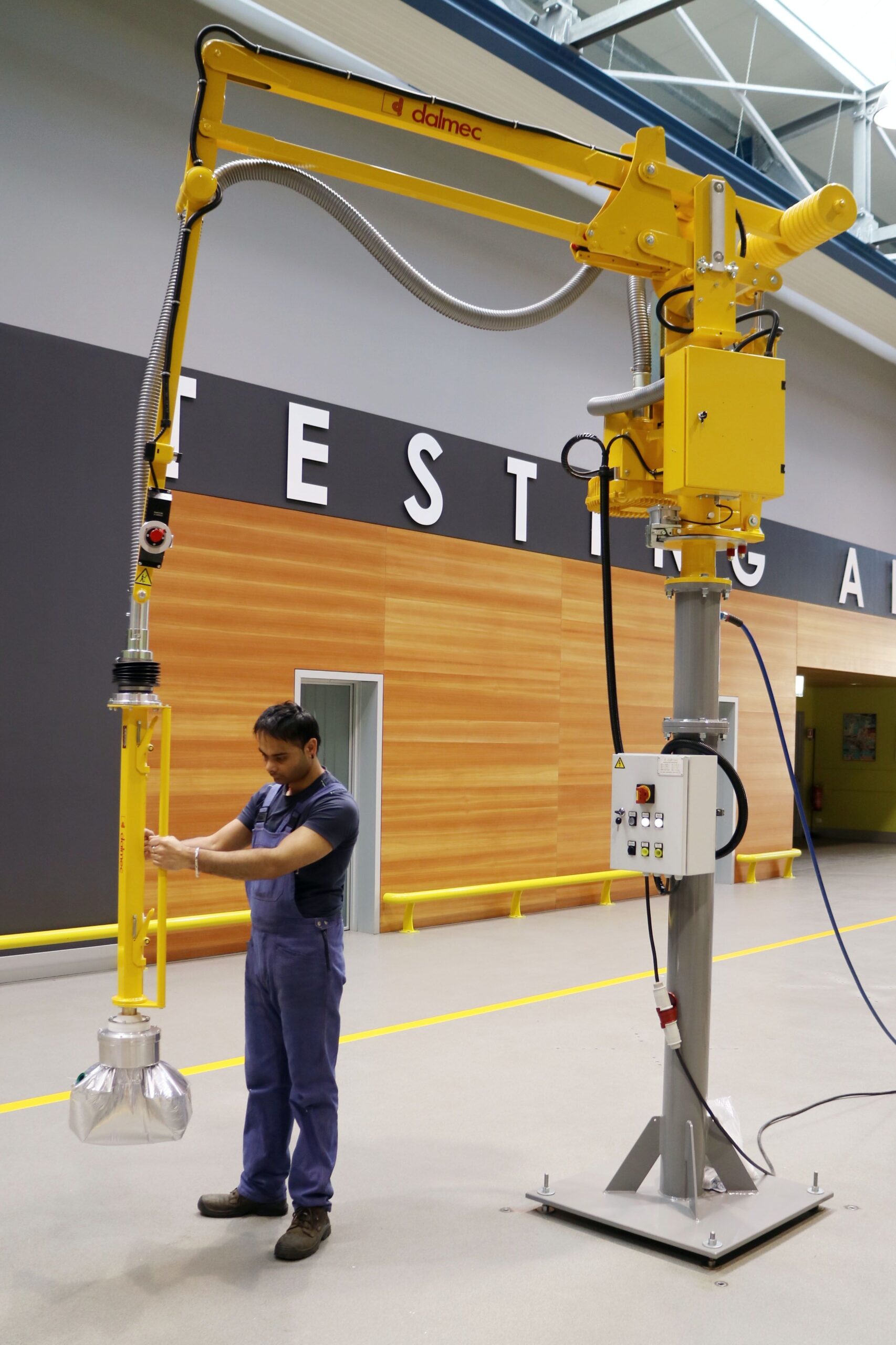

Bags of Tomato Concentrate — Partner Standard Lifting Arm (Food Lines)
A stainless-friendly Partner standard lifting arm equipped with suction cups lets operators pick heavy tomato-concentrate bags from crates and place them onto roller conveyors, with published examples showing ~50 kg capacity, ~2,900 mm reach and ~2,000 mm vertical lift.
Tanks – Overhead Partner with Jaws
Overhead Partner with jaws enables ergonomic pick-and-place of tanks across the work area with risk-assessed, standards-compliant safety.

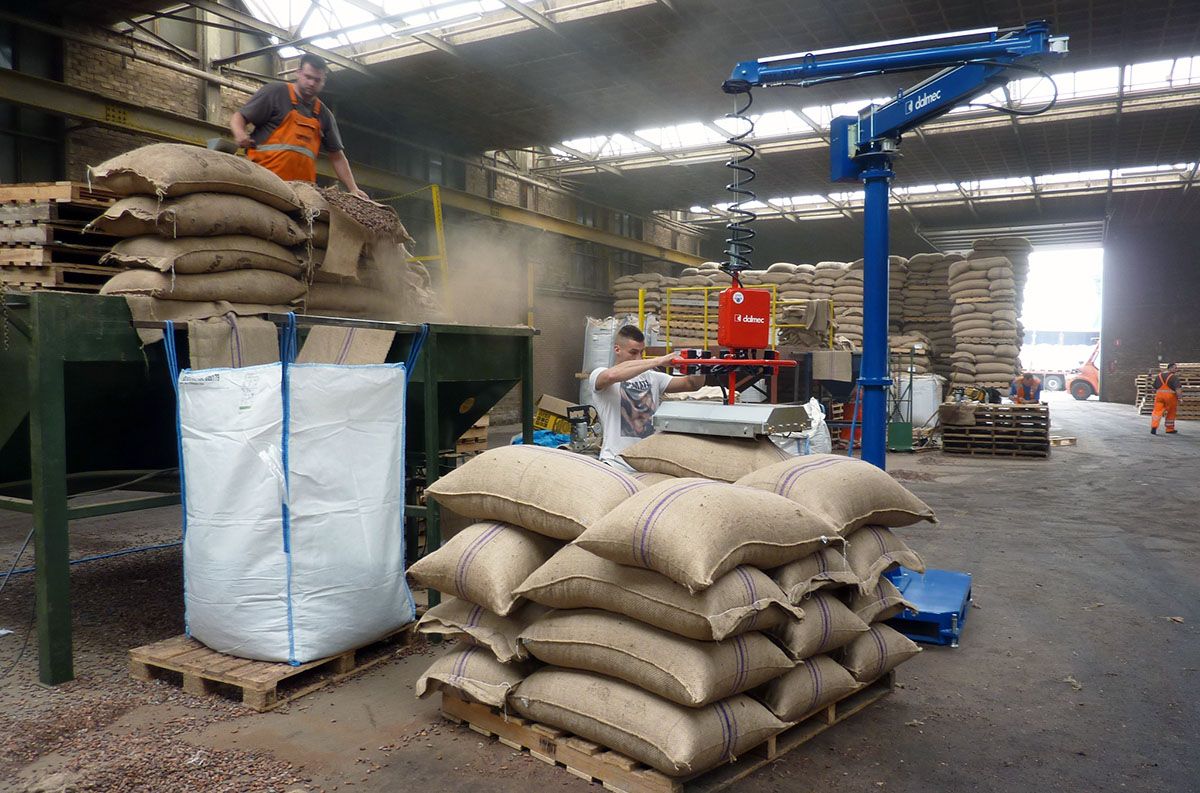

Cable Balancer for Bags — Pneumatic Grippers for Jute Sacks
A rope/cable balancer fitted with pneumatically actuated grippers handles jute coffee and cocoa sacks cleanly and safely, providing “weightless” manoeuvrability for repetitive bag moves in packaging and ingredients areas.
